Allison 1000 2000 P1 Planet Carrier 2nd Design w/ P2 Ring Gear 116580AA Duramax

Allison 1000 2000 P1 Planet Carrier 2nd Design w/ P2 Ring Gear 116580AA Duramax

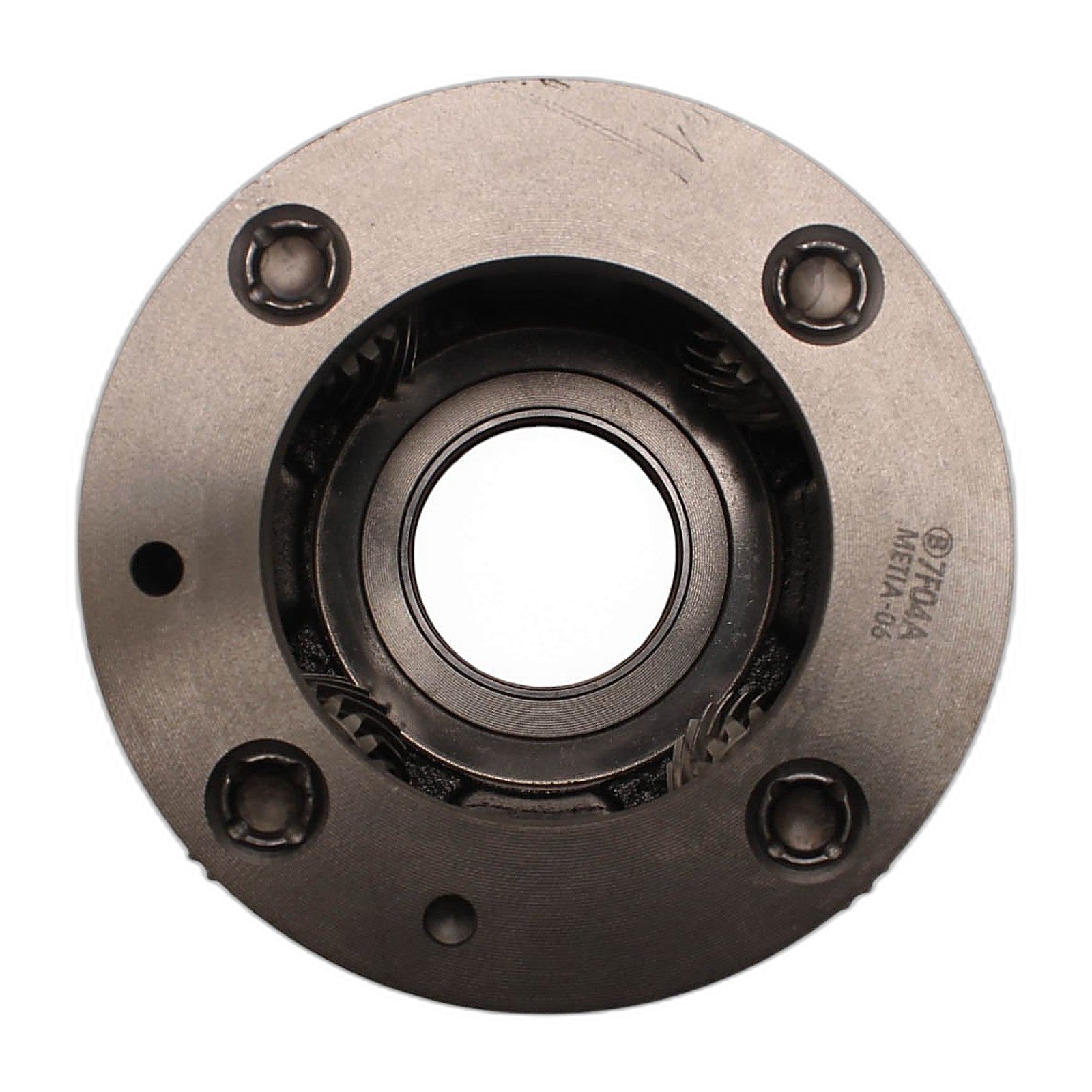

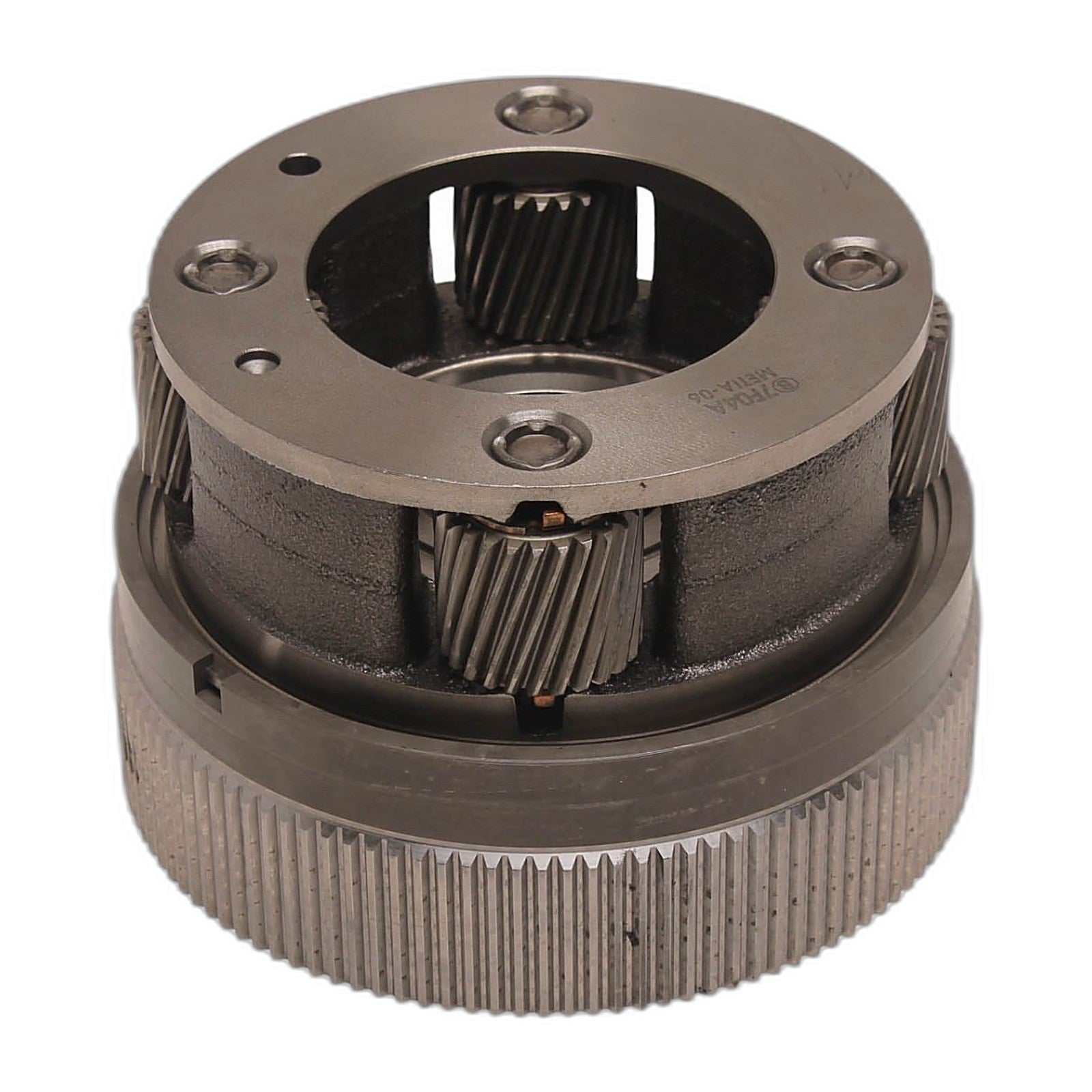

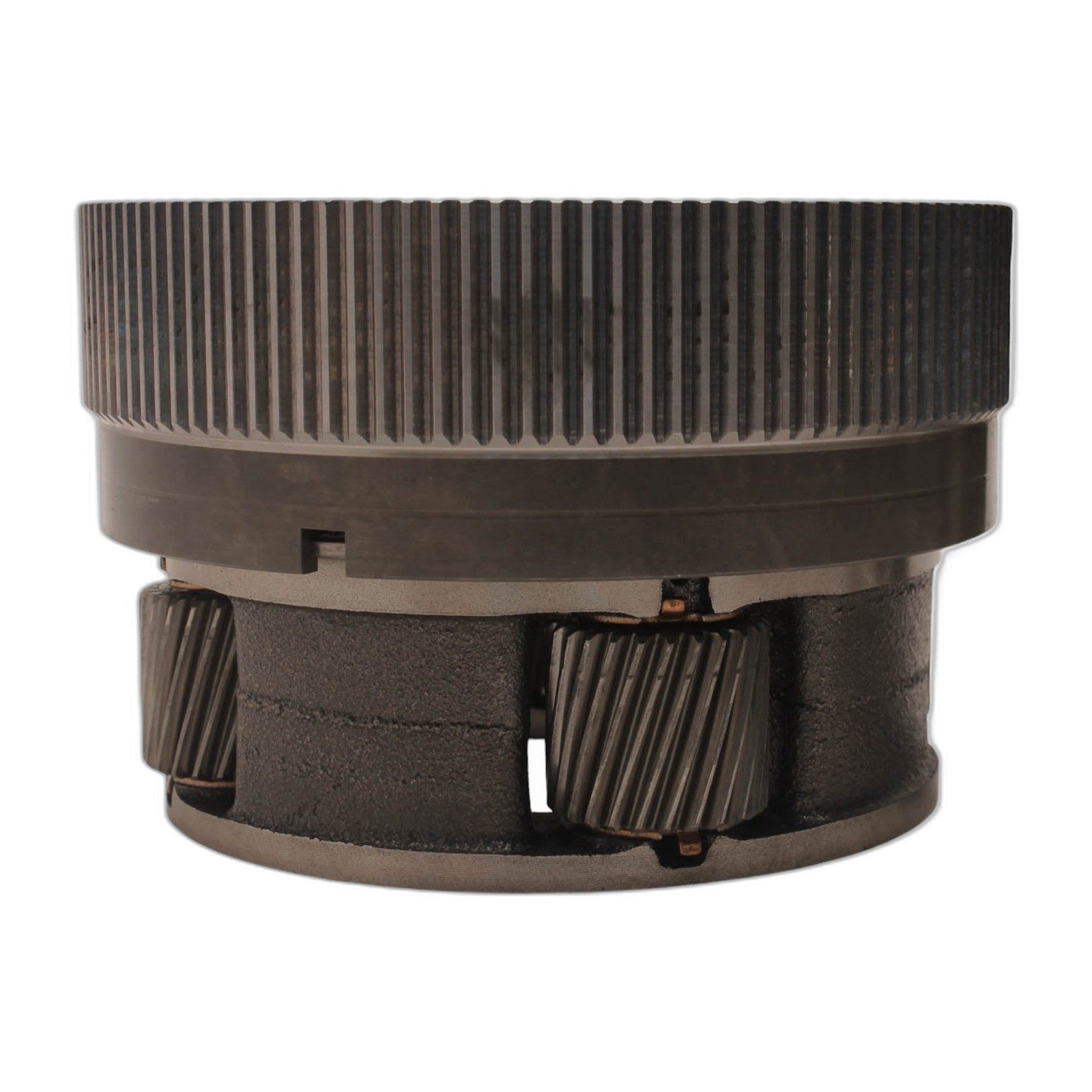

Used OEM unit pulled from an inspected donor transmission, cleaned and visually inspected before listing. Photos show a representative unit of this exact part and variant — see the fitment and casting notes below to confirm your match.

• SKU: G-AL1000-PL-U-01
• Includes: Used OEM Allison P1 planet carrier, 2nd design (recessed bearing face where the #244 bearing rides), with P2 ring gear as noted in Buffalo's product listing. No bearings or thrust washers included.
• Warranty: 30-day return-or-replace after delivery
• Shipping: UPS Ground from our Tennessee warehouse, 2 business day handling

OEM / interchange references (verify against your casting/tag):

• 116580AA

Fits (engine/year matters — read carefully): P1 (input) planet for the Allison 1000/2000/2400 family (LCT1000), 2000-up per WIT - GM Silverado/Sierra 2500HD-3500HD 6.6L Duramax 2001-2019, 8.1L gas trucks, and Allison-equipped GM medium-duty. SECOND DESIGN ONLY: recessed where the P1-to-P2 bearing rides, two washer notches, and it carries the P2 ring gear. 1st-design units use the flat-face carrier (Buffalo 116580A) - match your carrier style before buying.

Important: 1st vs 2nd design are different parts: 1st = FLAT where the bearing rides (no washer notches), 2nd = RECESSED with 2 washer notches + P2 ring gear. Transtar also lists a separate 06-up Hi-Helix P1 gear cut - buyers with Gen4 6-speeds must compare gear helix/photos. Description tells buyer to verify design against their teardown; no OEM number claimed.

Before you order: confirm your transmission code and casting/part numbers. Not sure? Message us through eBay with your VIN or transmission tag and we will confirm fitment the same business day. Rebuilder shops — ask about volume pricing. We stock transmission hard parts by family and can hold inventory for scheduled builds.
