Allison 1000 P3 Planet w/ Parking Lugs 29540500 27T Pinion 49T Sun Gear Duramax

Allison 1000 P3 Planet w/ Parking Lugs 29540500 27T Pinion 49T Sun Gear Duramax

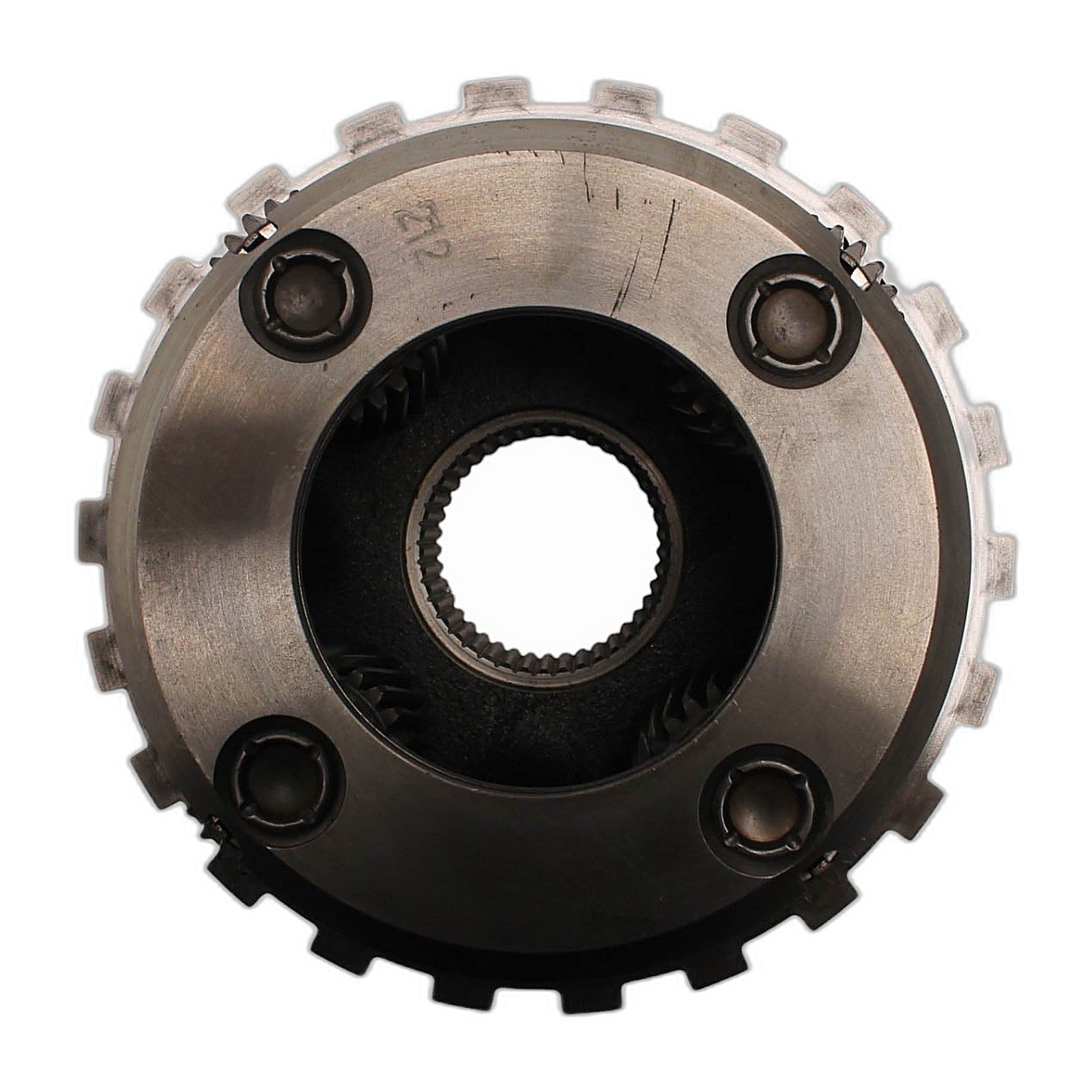

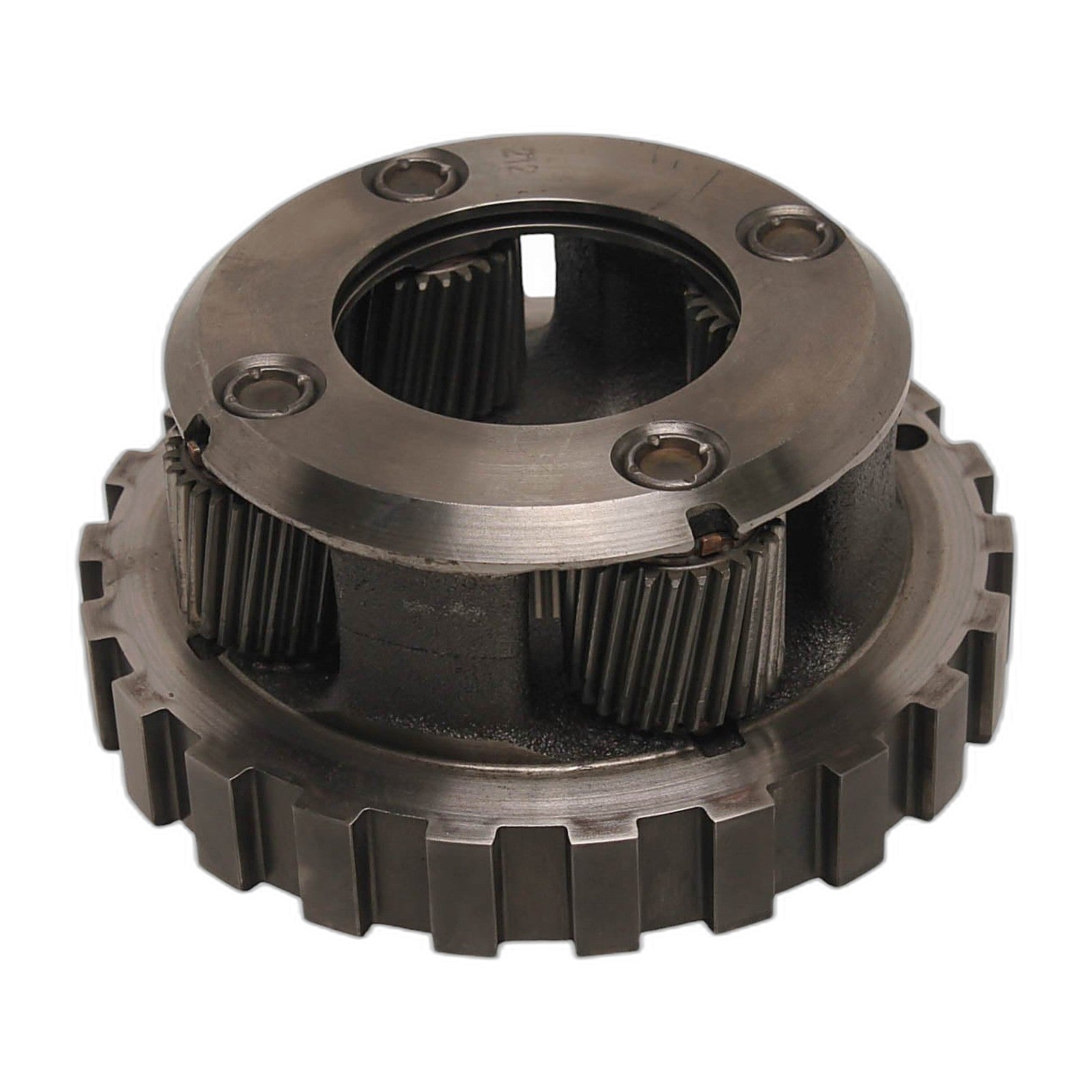

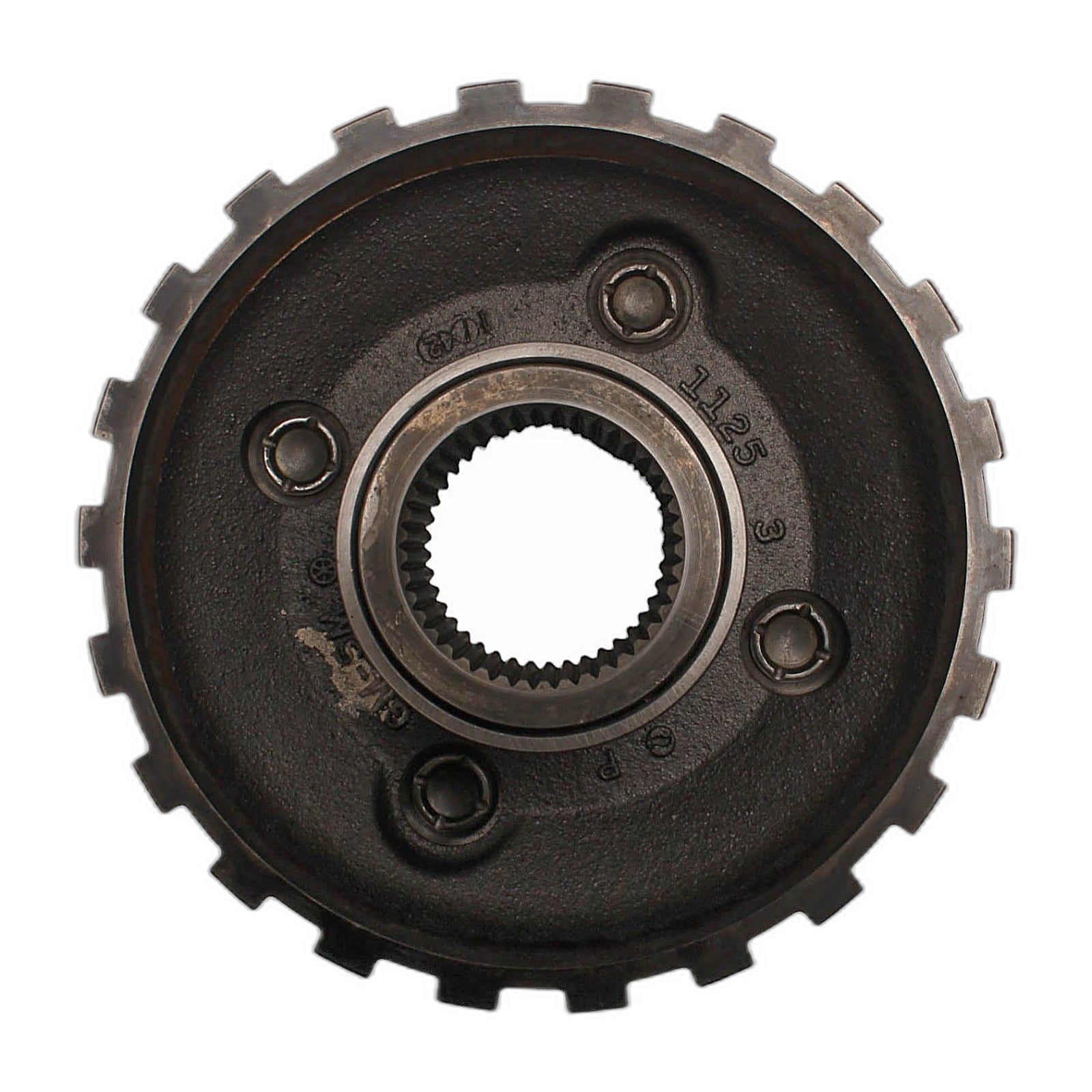

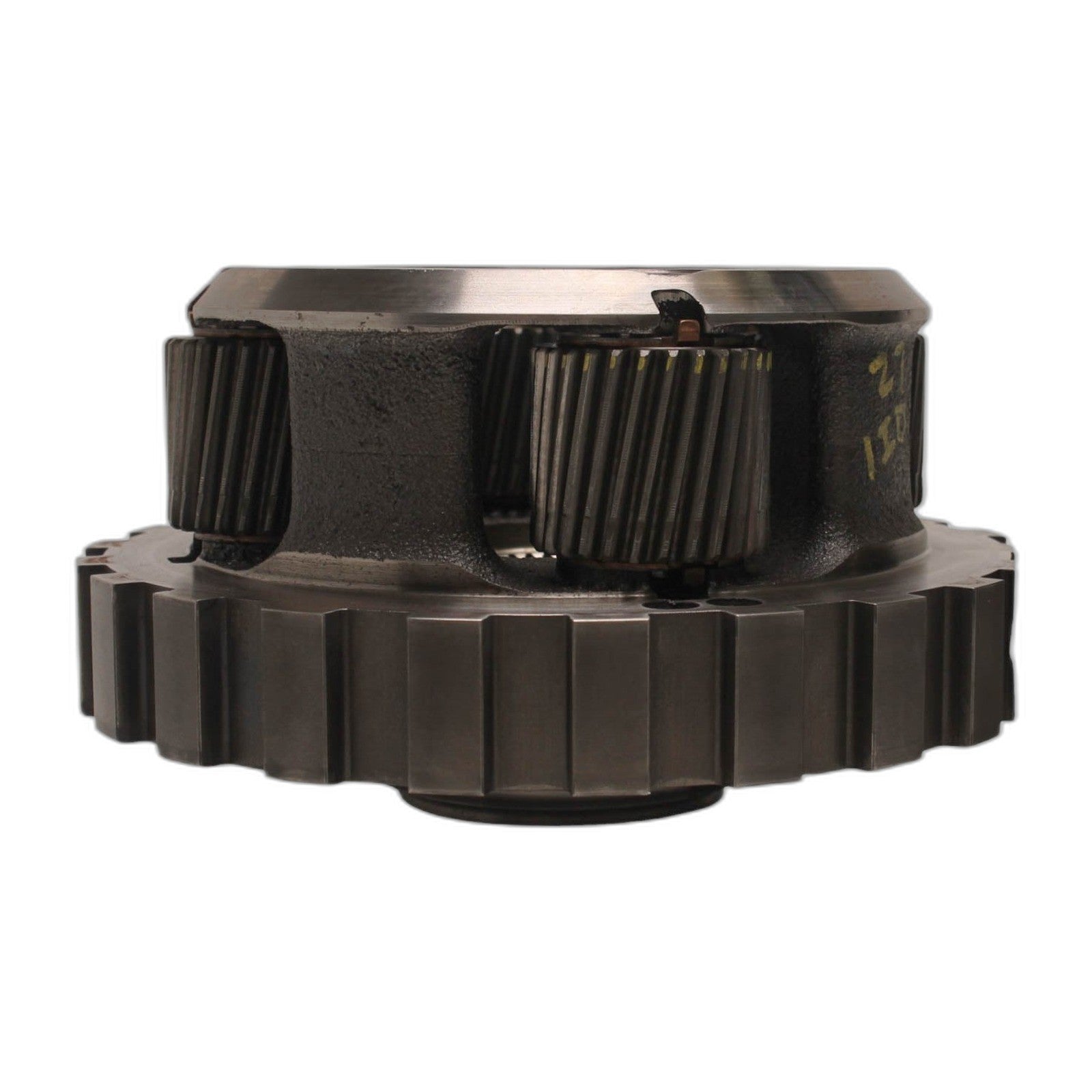

Used OEM unit pulled from an inspected donor transmission, cleaned and visually inspected before listing. Photos show a representative unit of this exact part and variant — see the fitment and casting notes below to confirm your match.

• SKU: G-AL1000-PL-U-02
• Includes: P3 planet carrier loaded with 4x 27T pinions, integral 22-lug parking gear. P3 sun gear, ring gear, and bearing NOT included.
• Warranty: 30-day return-or-replace after delivery
• Shipping: UPS Ground from our Tennessee warehouse, 2 business day handling

OEM / interchange references (verify against your casting/tag):

• 116584A
• 29540500

Fits (engine/year matters — read carefully): P3 (rear) planet WITH integral 22-lug parking gear - the park-equipped Allison 1000 (and 2400) configuration; the no-park version is the 2000-series style. Spec: 4 pinions, 27 teeth each, 1 ID groove, mates with 49T P3 sun (close ratio). WIT lists this exact carrier 2003-up; 2001-02 trucks used the 44mm-T6-bearing version (WIT 116584). Fits 2003-2019 Silverado/Sierra 2500HD-3500HD 6.6L Duramax and Allison 1000-equipped 8.1L/medium-duty GM ONLY where pinion/sun counts match - 2006-up Gen4 trucks may instead use the Hi-Helix 29T-pinion/53T-sun carrier.

Important: Park-lug P3 exists in 27T/49T-sun (this one) AND 29T/53T-sun Hi-Helix versions; no-park carriers also exist in 27T/49T and 31T/41T. 2001-02 = 44mm T6 bearing (different part, WIT 116584). Buyer must count pinion teeth + sun teeth, confirm 22 parking lugs and 1 groove. Description states 49T sun is the MATING gear, not included.

Before you order: confirm your transmission code and casting/part numbers. Not sure? Message us through eBay with your VIN or transmission tag and we will confirm fitment the same business day. Rebuilder shops — ask about volume pricing. We stock transmission hard parts by family and can hold inventory for scheduled builds.
