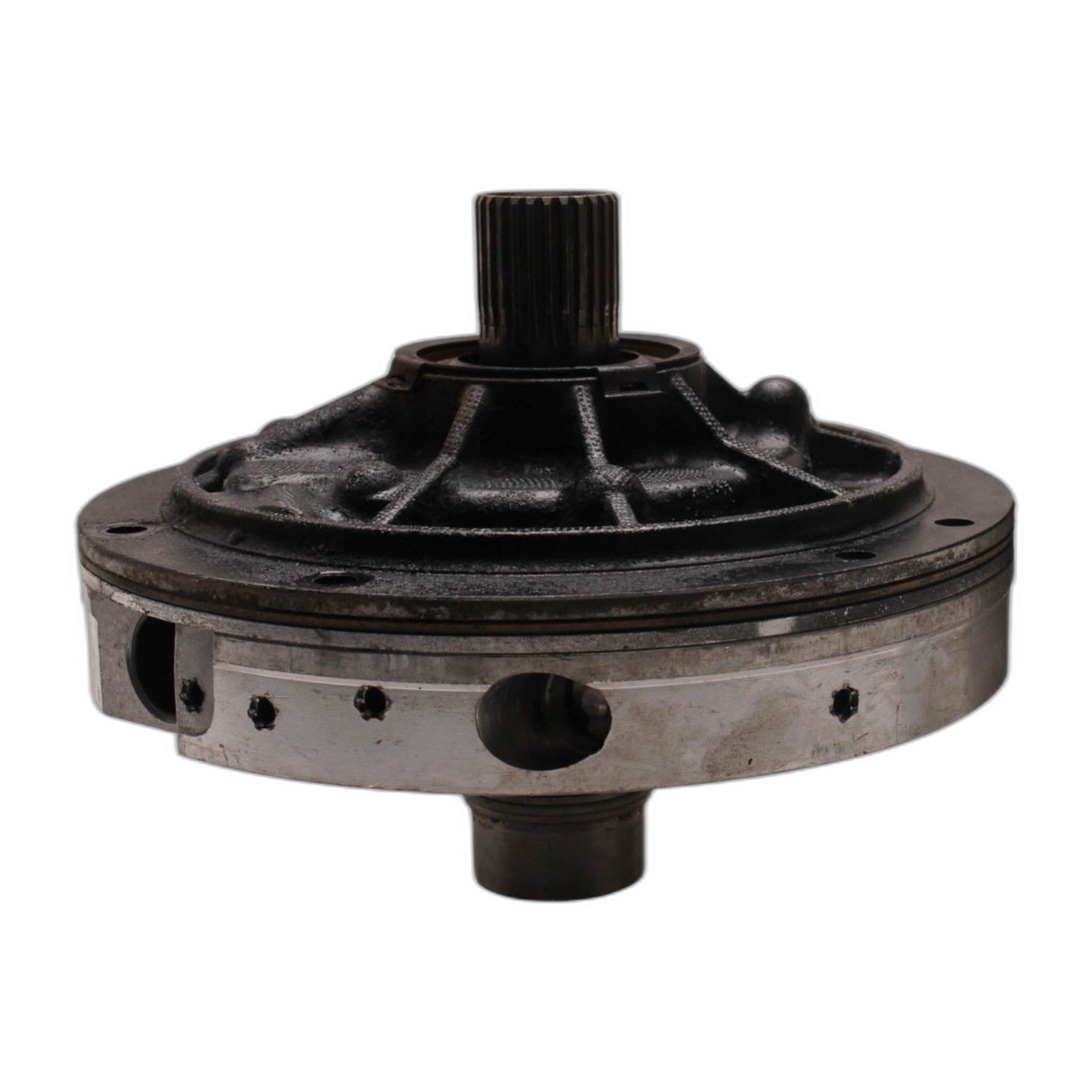

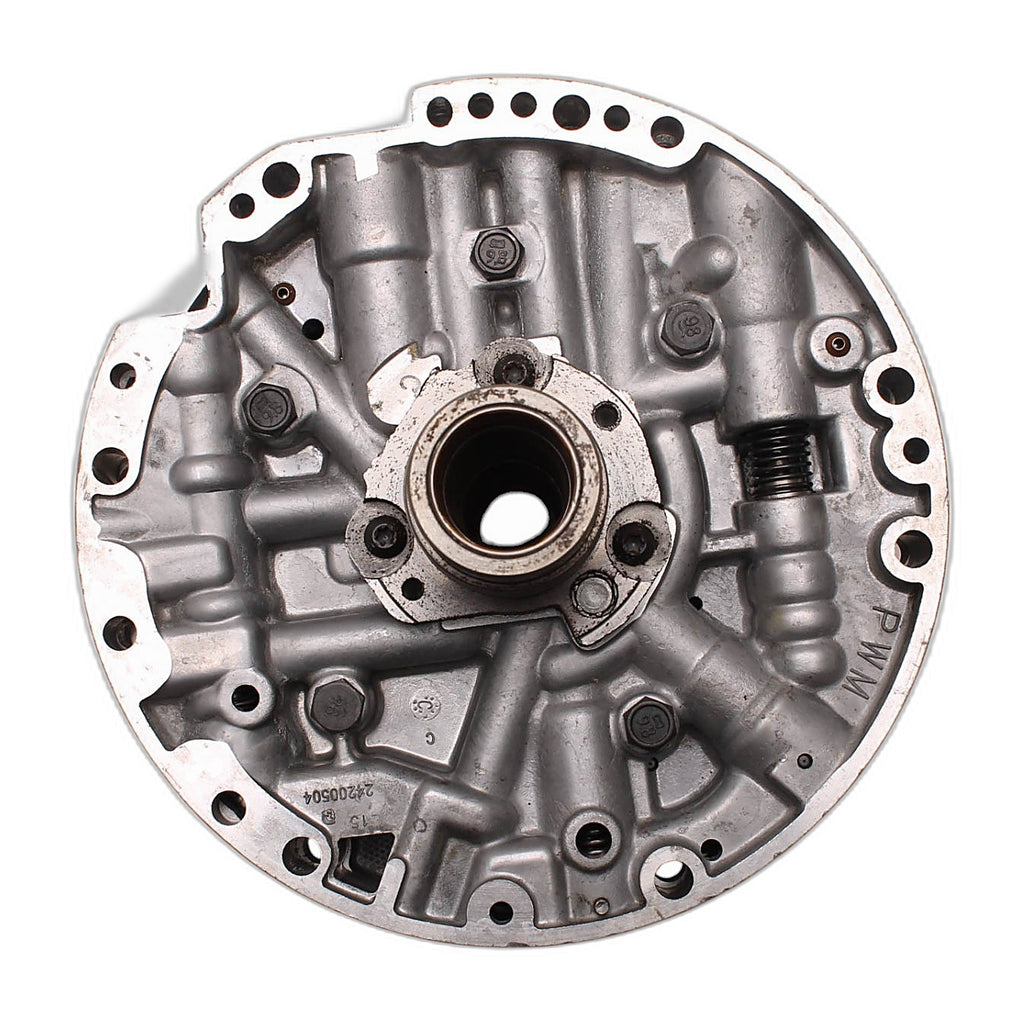

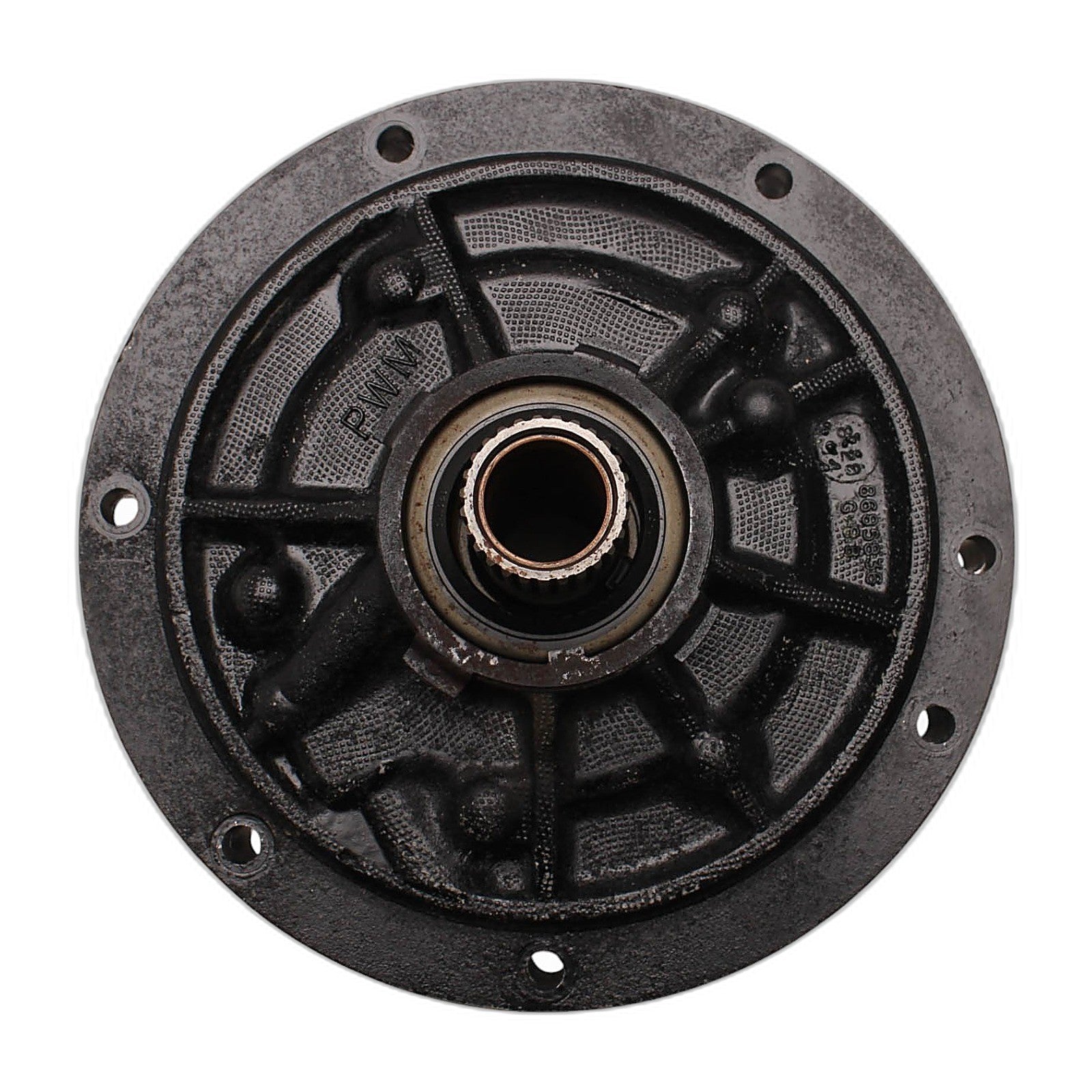

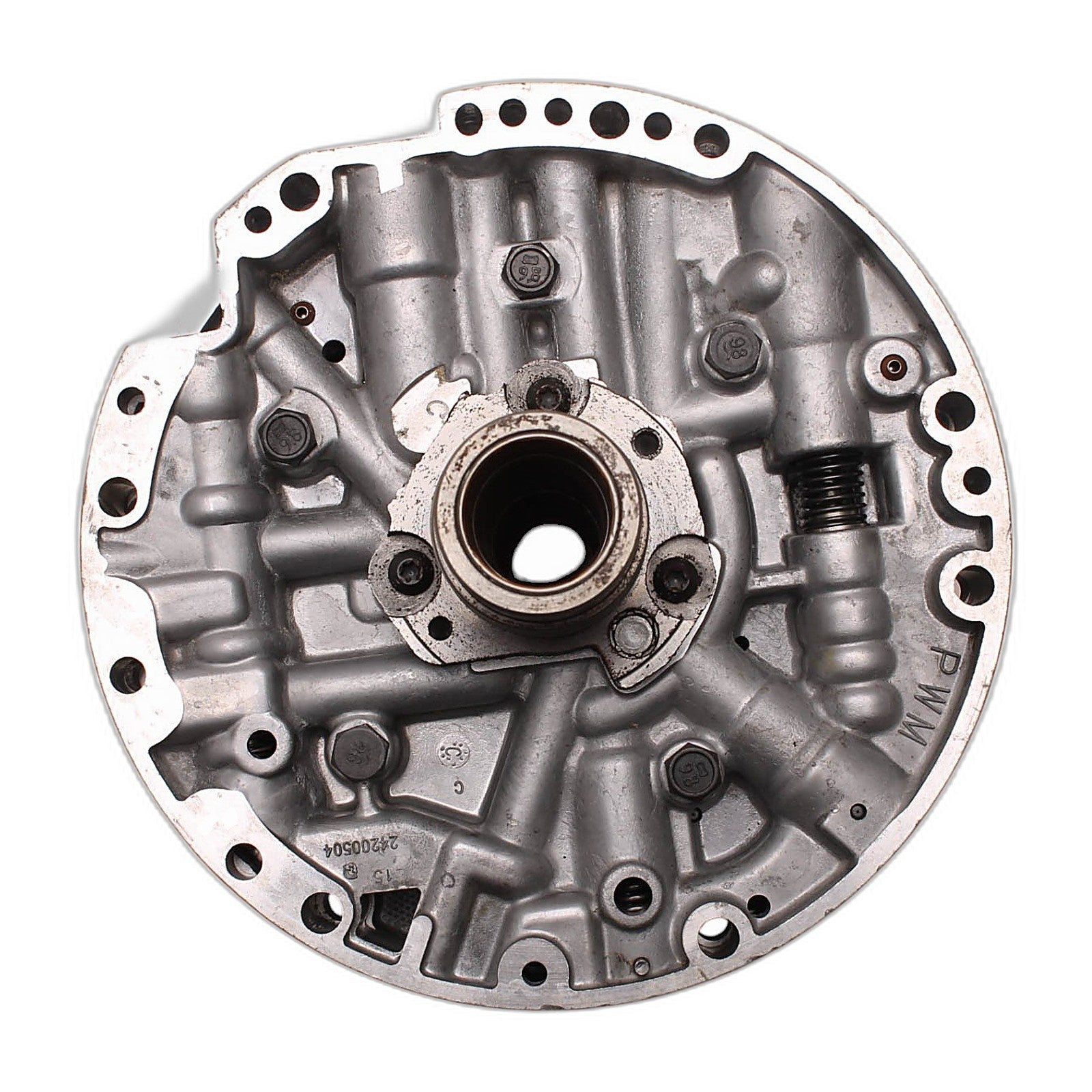

4L60E Front Pump Assembly 74500D PWM 1995-96 1-Piece Case Chevy C/K 1500 Camaro

4L60E Front Pump Assembly 74500D PWM 1995-96 1-Piece Case Chevy C/K 1500 Camaro

Used OEM unit pulled from an inspected donor transmission, cleaned and visually inspected before listing. Photos show a representative unit of this exact part and variant — see the fitment and casting notes below to confirm your match.

• SKU: G-4L60E-PM-U-01
• Includes: Complete good-used OEM front pump assembly: pump body + stator support/cover with rotor and slide assembled, no lip style. Does NOT include front seal, pump-to-case gasket, O-ring, or bushings — replace all soft parts at install (standard rebuild practice).
• Warranty: 30-day return-or-replace after delivery
• Shipping: UPS Ground from our Tennessee warehouse, 2 business day handling

OEM / interchange references (verify against your casting/tag):

• 74500D

Fits (engine/year matters — read carefully): 4L60E one-piece-case front pump, PWM: 1995-1996 Chevy/GMC C/K 1500 truck and 1995-1996 Camaro/Firebird (F-body PWM from 1995). 4.3L S-10/Sonoma, Blazer/Jimmy, Astro/Safari 1995 - many 1996 4.3L units moved to the 2-piece bolt-on-bellhousing case which takes a different pump; verify your case style and stator tube.

Important: Description must state: (1) PWM only — 1993-94 non-PWM pumps look identical externally but do not interchange; (2) one-piece case only — 2-piece-case late-95/96 requires 74500DA; (3) 298mm converter applications only — will not work with 300mm LS-style converters; (4) checked good used, not dyno-tested — inspect wear surfaces and replace bushings/seals before install.

Before you order: confirm your transmission code and casting/part numbers. Not sure? Message us through eBay with your VIN or transmission tag and we will confirm fitment the same business day. Rebuilder shops — ask about volume pricing. We stock transmission hard parts by family and can hold inventory for scheduled builds.
